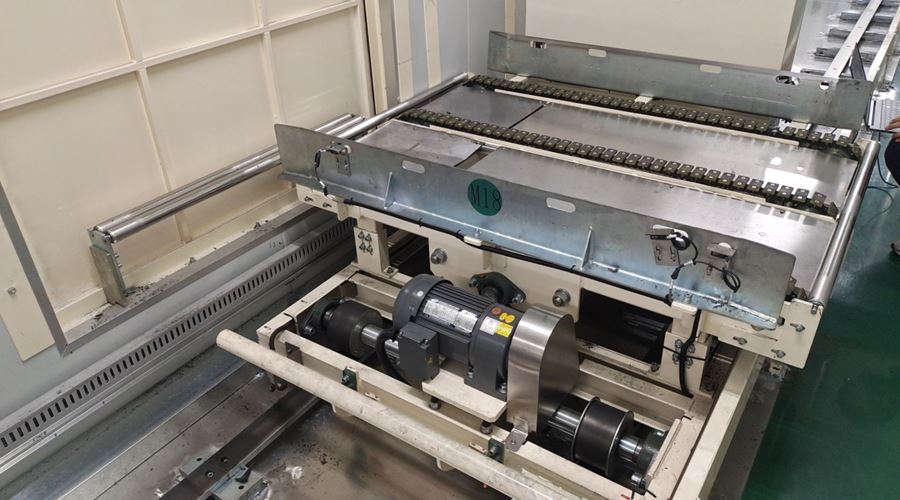

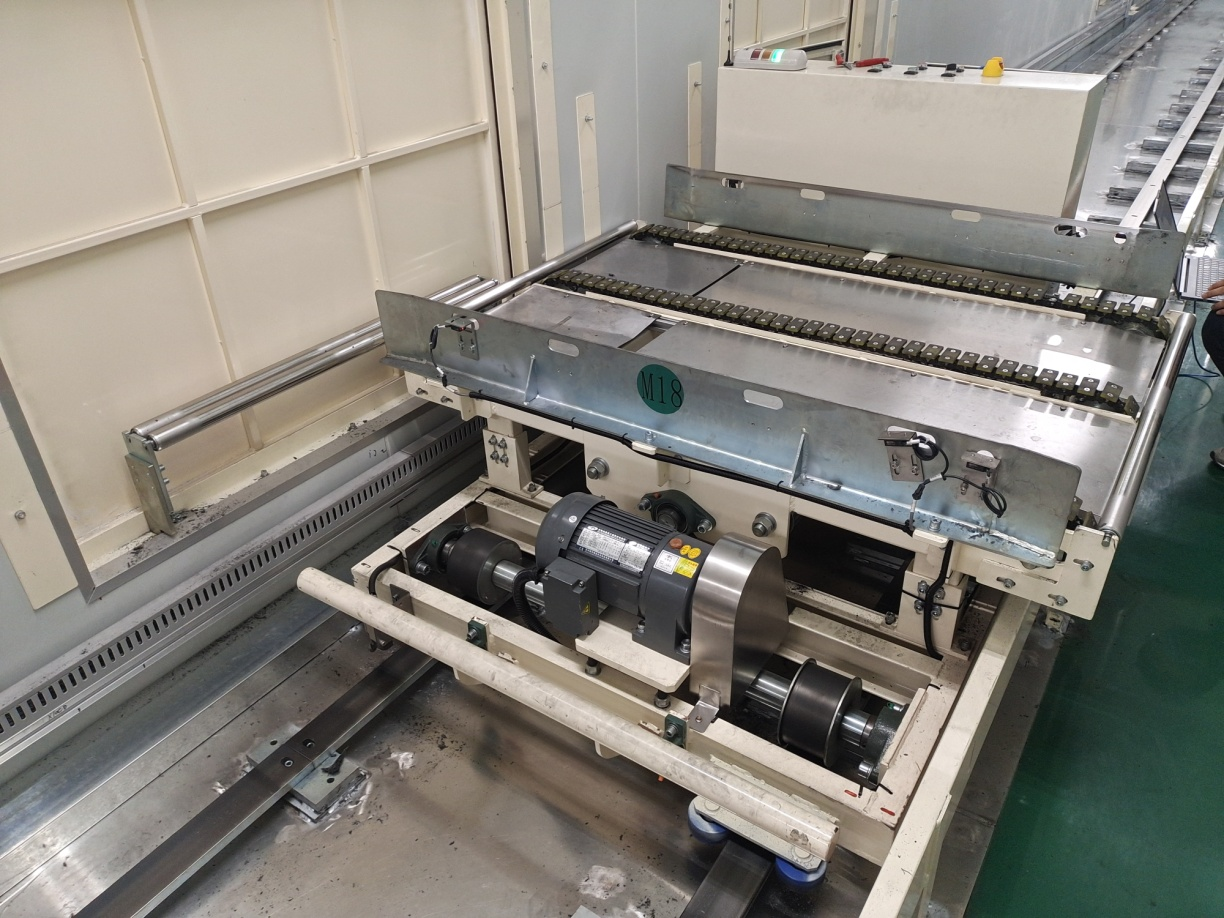

RGV track car

Rail Guided Vehicle, abbreviated as RGV, can be used in warehouses with various high-density storage methods. The car passage can be designed to be any length, increasing the storage capacity of the entire warehouse, and there is no need for forklifts to enter the passage during operation, making it safer.

Technical Parameter

Load capacity	1000kg-1500kg	Braking method	Electromagnetic braking
Conveying height	≥2500MM	running speed	0-20M/MIN
Power supply mode	Sliding contact line power supply	Docking workstations	6-8个
operating mode	Wireless encounter control+PLC control	Docking accuracy	±5MM
Power of walking motor	1.5KW	Logistics Line Style	Chain conveying Rolling and conveying
